Shunt Surgery in Hydrocephalus: Latest Advances and Outcomes

Shunt Surgery in Hydrocephalus: Innovations and Long-term Outcomes

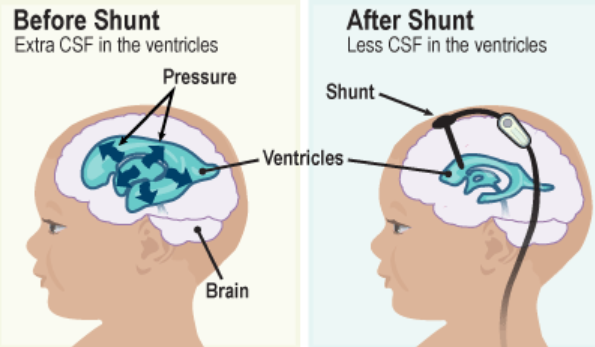

Hydrocephalus is one of the most challenging neurosurgical conditions, marked by abnormal accumulation of cerebrospinal fluid (CSF) within the ventricular system. Shunt surgery, despite being over a century old in concept, remains the mainstay of treatment. Yet, it continues to evolve with novel designs, adjunctive technologies, and improved long-term strategies. For medical professionals, understanding the advances, complications, and real-world long-term outcomes of shunt surgery is essential for optimizing patient care.

Pathophysiology of Hydrocephalus
Hydrocephalus can be categorized into:

• Communicating hydrocephalus – impaired absorption of CSF at arachnoid granulations.


• Non-communicating (obstructive) hydrocephalus – blockage of CSF flow within ventricles (e.g., aqueductal stenosis, tumors).


• Normal Pressure Hydrocephalus (NPH) – typically in the elderly, presenting with gait disturbance, urinary incontinence, and cognitive decline.


• Congenital hydrocephalus – due to developmental anomalies (e.g., myelomeningocele, aqueductal atresia).


Historical Perspective of Shunt Surgery

• Early attempts in the 19th century included subcutaneous drainage, but infection and blockage limited success.


• Modern shunts, pioneered in the 1950s, used silicone catheters with valves to regulate CSF flow.


• Since then, design innovations—such as adjustable valves, anti-siphon devices, and antibiotic coatings—have significantly transformed outcomes.


Types of Shunt Procedures

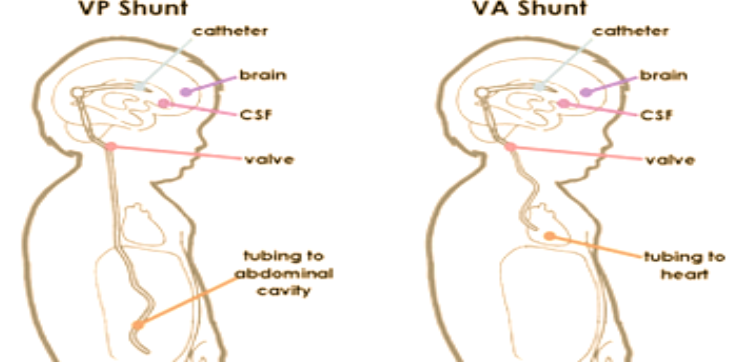

1. Ventriculoperitoneal (VP) Shunt

   • Most common.


   • Proximal catheter placed in the lateral ventricle, distal catheter into the peritoneal cavity.


   • Advantages: Large absorptive surface, relatively easy placement.


1. Ventriculoatrial (VA) Shunt

   • The distal catheter terminates in the right atrium.


   • Used when the peritoneal cavity is unsuitable (e.g., prior abdominal surgery, peritonitis).


   • Risks: Endocarditis, pulmonary emboli.


1. Lumboperitoneal (LP) Shunt

   • Diverts CSF from lumbar subarachnoid space to peritoneum.


   • Indicated in communicating hydrocephalus and idiopathic intracranial hypertension.


   • Less invasive, but limited by the risk of over-drainage.


Innovations in Shunt Technology
1. Programmable Valves

• Allow non-invasive adjustment of CSF drainage using external magnetic devices.


• Essential in pediatric patients as ventricular compliance changes with growth.


• Reduce the need for revision surgeries.


2. Anti-Siphon and Gravitational Units

• Prevent over-drainage when the patient is upright.


• Especially important in NPH, where postural changes can lead to subdural hematomas.


3. Antibiotic-Impregnated Catheters

• Reduce infection rates, one of the most serious complications of shunts.


• Vancomycin or rifampin-impregnated shunt systems show promising results in lowering bacterial colonization.


4. Telemetric Shunt Monitoring

• Wireless sensors embedded in shunts allow real-time ICP (intracranial pressure) monitoring.


• Provide feedback for valve adjustments without invasive procedures.


5. Biomaterials and Biofilm Resistance

• Research on hydrophilic coatings and antimicrobial polymers aims to reduce obstruction and infection.


Long-Term Outcomes of Shunt Surgery
Survival and Revision Rates

• Approximately 40–50% of shunts fail within 2 years post-implantation, mostly due to infection, obstruction, or disconnection.


• Pediatric patients face higher lifetime revision rates due to growth and longer duration of shunt dependence.


• Adult patients with NPH often benefit from sustained improvement in gait and cognition, though some may require valve adjustments.


Quality of Life

• Children with shunts can achieve near-normal development if intervention is timely, but neurocognitive outcomes vary based on etiology.


• Adults with shunt-treated NPH often regain independence in daily activities.


• Depression and anxiety are common due to fear of shunt malfunction—highlighting the importance of counseling.


Complications

• Mechanical failure: Blockage, disconnection, or valve malfunction.


• Infection: Often presents within 6 months; most common organisms include Staphylococcus epidermidis and S. aureus.


• Over-drainage: Can lead to slit ventricle syndrome or subdural hematomas.


• Abdominal complications: Pseudocysts, bowel perforation (rare).

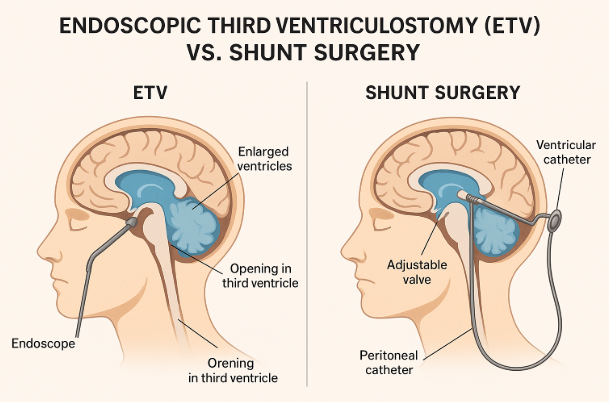

Endoscopic Third Ventriculostomy (ETV) vs. Shunt Surgery

• ETV creates a fenestration in the floor of the third ventricle, bypassing obstructed pathways.


• Effective in aqueductal stenosis and some obstructive hydrocephalus cases.


• Long-term shunt independence is possible, reducing revision rates.


• However, in infants and in communicating hydrocephalus, shunts remain the preferred treatment.


Recent Research & Innovations

• Machine Learning in Shunt Outcome Prediction: AI models now help predict which patients will respond better to shunt vs. ETV.


• Smart Valves with Remote Adjustment: Research is underway for smartphone-based valve control using encrypted systems.


• Global Health Advances: Low-cost shunt systems are being developed to address hydrocephalus in low-income countries, particularly for post-infectious hydrocephalus in Africa.


Practical Considerations for Residents and Neurosurgeons

1. Always consider etiology before selecting shunt type.


2. Favor programmable valves in pediatric and NPH patients.


3. Counsel patients and families about signs of shunt malfunction: headache, vomiting, lethargy, seizures.


4. Meticulous sterile technique remains the strongest defense against infection.


5. Consider ETV when suitable, to avoid lifelong shunt dependence.


Future Directions

• Bioengineered Shunt Systems that mimic natural CSF absorption.


• AI-integrated Telemetry for real-time monitoring of ICP and CSF flow.


• Regenerative Medicine aims to restore CSF pathways rather than mechanical diversion.


The ultimate goal: a shunt system that adjusts automatically to physiological needs, resists infection, and lasts a lifetime without revision.
