The Science Behind Chronic Orofacial Pain and Dental Innervation

Hidden Anatomical Connections Between Dental Pulp Innervation and Chronic Facial Pain
Neural Complexity of the Dental Pulp

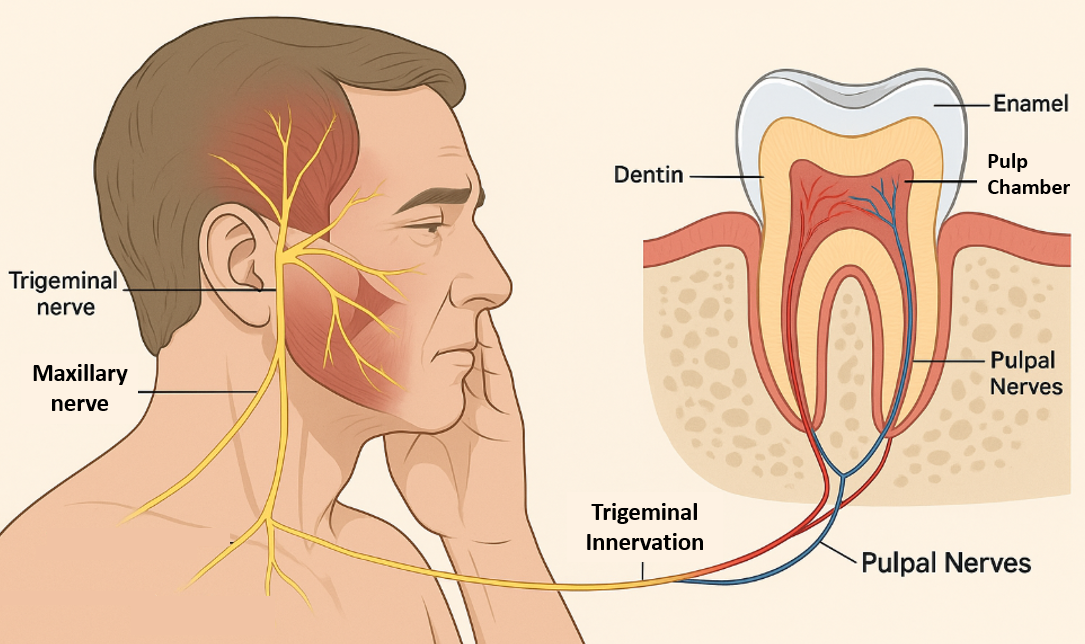

The dental pulp is not a simple vascularized connective tissue, as once believed. Instead, it is one of the most densely innervated tissues in the human body. The trigeminal nerve, specifically its maxillary (V2) and mandibular (V3) branches, provides the primary sensory supply. Within the pulp, a rich plexus of sensory fibers—mostly unmyelinated C-fibers and thinly myelinated Aδ fibers—creates a highly sensitive network capable of detecting noxious stimuli, thermal changes, and pressure variations.

These fibers penetrate the dentin via tubules, extending as far as the dentino-enamel junction, which explains why even superficial caries or enamel cracks may trigger disproportionate pain responses. Unlike other somatic tissues, the pulp lacks collateral circulation and has a limited ability to expand under inflammatory conditions. This unique arrangement not only makes pulpitis excruciating but also sets the stage for referred pain patterns that mimic sinus disease, migraine, or temporomandibular joint (TMJ) dysfunction.



Shared Pathways: The Trigeminal Convergence
A fundamental concept in understanding chronic facial pain is the trigeminal convergence phenomenon. Neurons from the pulp converge onto second-order neurons in the trigeminal spinal nucleus, where they overlap with inputs from skin, mucosa, and muscles of the face.

This convergence explains why pain originating from the pulp can be misinterpreted as pain in another anatomical region. For instance:

• Pulpal pathology in upper molars may be perceived as sinusitis because of overlapping innervation with the maxillary sinus.


• Lower molar pain may radiate to the ear, mimicking otitis media.


• Chronic pulp inflammation may be perceived as diffuse jaw pain, overlapping with TMJ disorders.


This anatomical overlap complicates diagnosis, particularly in patients with persistent orofacial pain after dental interventions such as root canal therapy or extractions.

Neurogenic Inflammation and Chronicity
Chronic facial pain is often maintained not solely by structural pathology but also by neurogenic inflammation. Activated pulpal nerves release neuropeptides such as substance P, calcitonin gene-related peptide (CGRP), and neurokinin A. These mediators perpetuate local vasodilation, plasma extravasation, and immune cell recruitment, creating a self-sustaining inflammatory loop.

Even after endodontic treatment, residual nerve sprouting or abnormal pulpal afferent activity can persist, maintaining sensitization in the trigeminal nuclei. This mechanism may explain why some patients develop chronic neuropathic pain syndromes—such as atypical odontalgia or persistent idiopathic facial pain—without ongoing local disease.

Hidden Links to Headache and Migraine
Several clinical studies suggest that pulpal innervation shares a bidirectional pathway with migraine pathophysiology. Trigeminal afferents from the pulp can activate the trigeminal nucleus caudalis, which also processes input from meningeal blood vessels. This cross-talk explains why some dental pathologies trigger migraine-like headaches and why migraineurs are often more sensitive to pulpal stimulation.

Moreover, CGRP, a major mediator in both pulp inflammation and migraine attacks, forms a biochemical link. The therapeutic success of CGRP antagonists in migraine may eventually extend to certain forms of chronic dental-related orofacial pain.

Psychoneuroimmunology of Pulpal Pain
Chronic pain cannot be understood in isolation from psychosocial factors. The hidden anatomical connections extend beyond nerves to immune and psychological systems. Stress, anxiety, and systemic inflammation lower pain thresholds and increase trigeminal excitability. Cortisol fluctuations, immune dysregulation, and central sensitization amplify pulpal pain perception, explaining why two patients with identical carious lesions may report vastly different pain intensities.

Diagnostic Pitfalls and Clinical Implications
For practicing dentists and physicians, misinterpreting pulpal pain as sinusitis, neuralgia, or even psychiatric in origin is a common pitfall. Key diagnostic challenges include:

• Overlapping symptoms: Facial pain of dental origin often lacks a clear trigger.


• Delayed onset: Pain may occur weeks after dental procedures, complicating causal attribution.


• Non-resolving pain: Even after tooth extraction, central sensitization may maintain pain.


Advanced diagnostic tools, such as quantitative sensory testing, cone-beam computed tomography (CBCT), and high-resolution MRI of the trigeminal nerve, may help distinguish pulpal from non-dental pain sources.

Therapeutic Insights
Given the anatomical connections, treatment of chronic facial pain requires a multidisciplinary approach:

1. Endodontic precision: Proper cleaning, shaping, and obturation reduce the risk of residual pulpal nerve activity.


2. Neuromodulation: Topical anesthetics, systemic neuropathic agents (gabapentin, pregabalin), or botulinum toxin injections may be effective when pain persists beyond dental treatment.


3. Targeting neuropeptides: Research into CGRP antagonists and NK-1 inhibitors may transform the treatment of odontogenic facial pain.


4. Psychological support: Cognitive-behavioral therapy, mindfulness, and stress reduction improve outcomes in patients with central sensitization.


Future Directions in Research
Emerging imaging techniques, such as tractography and functional MRI, are uncovering the dynamic communication between pulpal nerves and central trigeminal pathways. Additionally, regenerative endodontics—using stem cells and bioactive scaffolds—may one day prevent aberrant nerve sprouting and reduce chronic pain risk after dental trauma or caries.

Understanding these hidden anatomical connections is not merely academic—it is the key to reducing misdiagnosis, overtreatment, and the burden of chronic orofacial pain worldwide.
